Beschrijving

Kenmerken:

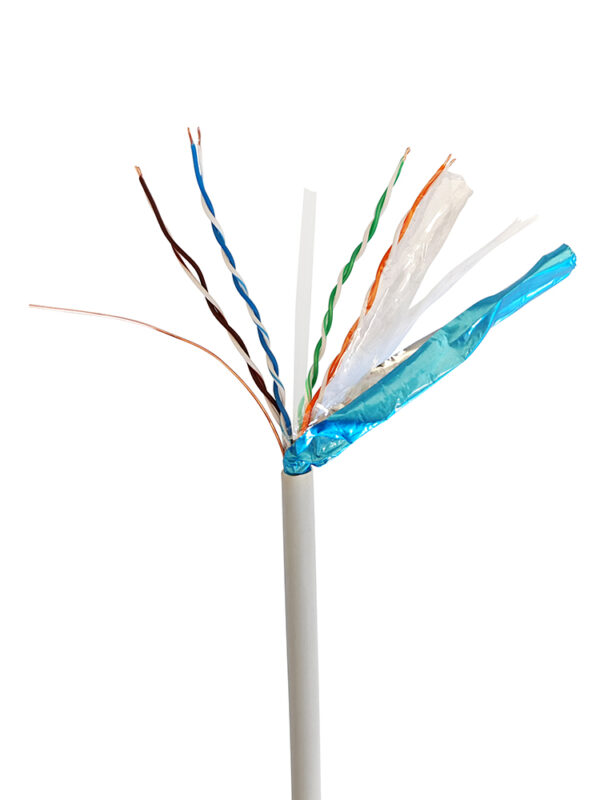

FTP afgeschermde LAN-kabel met stugge (solid) geleiders
Hoge kwaliteit CCA geleiders
Categorie 6

Specificaties:
Foil shielded twisted pair (FTP) LAN cable
Category 6
Conductor material: 0.56 mm (AWG23) solid CCA (30%)
Length: 100 m
Package: roll
Color: grey
Conductor resistance (max): 250 ohm/ 1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 – 60 degrees
Operating temperature: -20 – 70 degrees
Working distance: <50m
