Beschrijving

Low Smoke Zero Halogen (LSZH) jacket

Kenmerken:

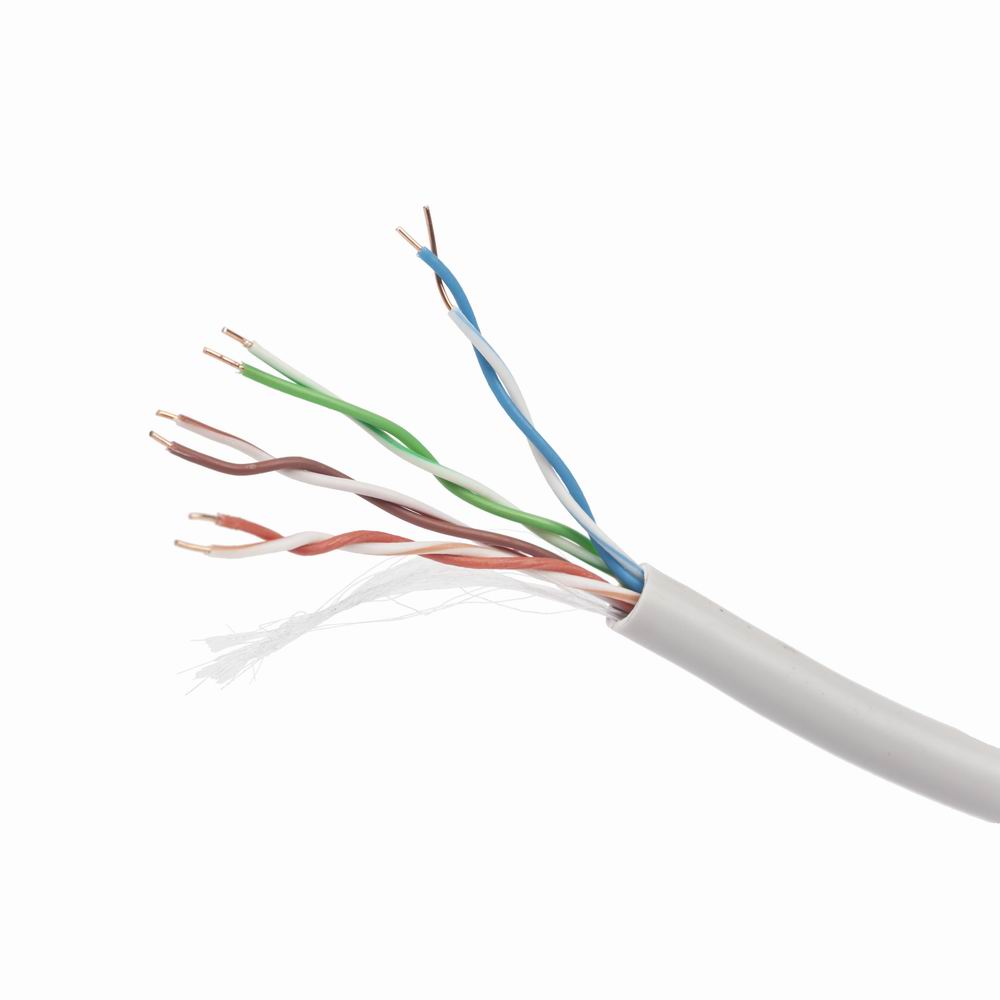

UTP onafgeschermde LAN-kabel met stugge (solid) geleiders
Hoge kwaliteit volkoperen geleiders
Categorie 5E
Low Smoke Zero Halogen (LSZH)

Specificaties:
Unshielded twisted pair (UTP) LAN cable
Category 5E
Conductor material: AWG24 solid copper
Length: 1000 ft (305 m)

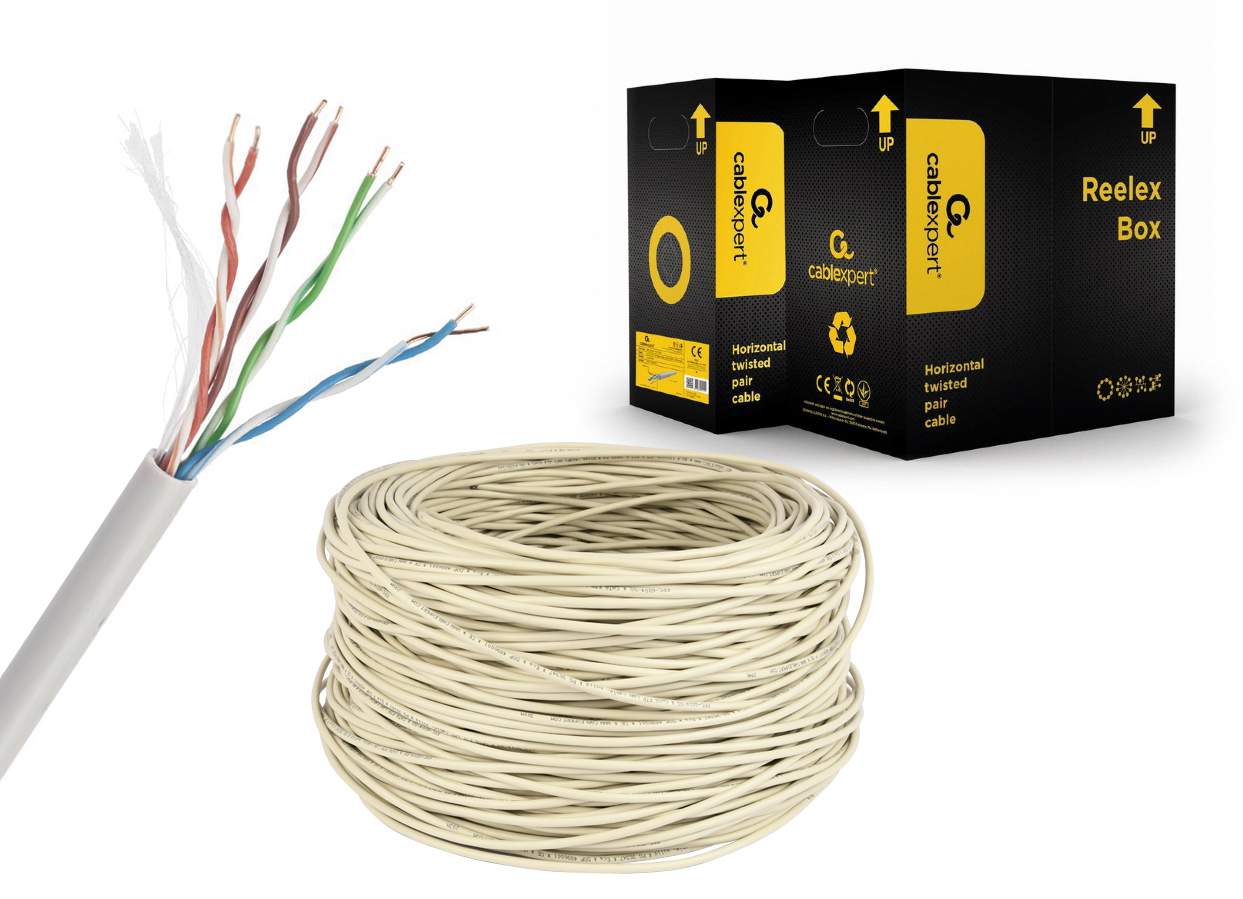

Package: Reelex box
Color: grey
Conductor resistance (max): 90 ohm/ 1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 – 60 degrees
Operating temperature: -20 – 70 degrees
Working distance: <100m
